SQ Pro
Variable Speed Pump (1.0HP)
Product code: 11030035
Includes GST. Shipping calculated at checkout.
Currently out of stock
- Designed and made in Brisbane
- Manufacturer's warranty
- Australia-wide delivery
- Local support, Mon–Fri
Overview

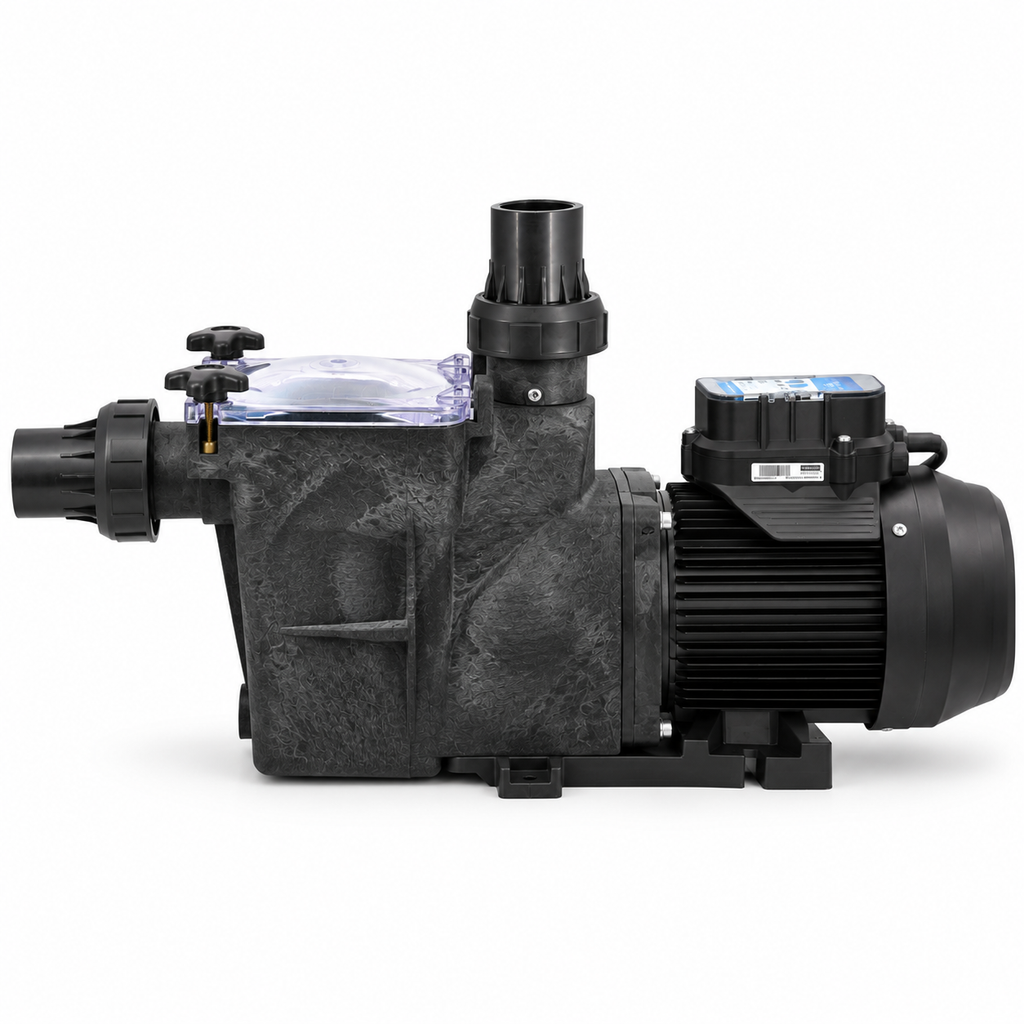

Poolrite SQ Pro Variable Speed Pumps
Efficient, Programmable, Quiet Pool Filtration
The Poolrite SQ Pro is Poolrite's variable speed pool pump, combining a brushless DC motor and simple on-motor speed control with the proven pump housing of the Quietline SQI.
Available in 1.0 HP (SQ Pro 750) and 1.5 HP (SQ Pro 1100) models, the SQ Pro lets you run everyday filtration at a low speed and only step up when you need more flow, for backwashing, cleaners or water features. Running slower for longer moves the same water for a fraction of the energy of a single-speed pump.
Lower Running Costs
Pump energy use rises steeply with speed, so a variable speed pump running on low uses far less power than a single-speed pump running flat out. Set at the low speed recommended in the quick start guide, the SQ Pro can cut pump running costs by up to 70% compared with a single-speed pump.
Use the Pool Volume Calculator to estimate the saving for your pool and electricity price.
Drop-In Replacement
The SQ Pro shares the SQ footprint, so it can replace a Poolrite Quietline SQI, SQ Junior or SQ Gemini pump without re-plumbing.
Key Features
- 1.0 HP (750 W) variable speed pump
- 6-star energy rating
- Brushless DC motor with on-motor touch controls and RPM display
- Adjustable from 1,000 to 2,850 RPM in 25 RPM steps
- Low, medium and high speed presets
- Self-priming, with a timed priming run at full speed on start-up
- Quiet operation at low filtration speeds
- Built on the proven Quietline SQI pump housing
- Clear lid for a full view of the strainer basket
- Drop-in replacement for SQI, SQ Junior and SQ Gemini pumps
- Suits media filters up to 800 mm diameter and up to 6 spa jets
- 230–240 V single-phase supply
SQ Pro Range
| Specification | SQ Pro 750 | SQ Pro 1100 |
|---|---|---|
| Output | 750 W (1.0 HP) | 1,100 W (1.5 HP) |
| Max. input power | 975 W | 1,400 W |
| Full-load current | 6.5 A | 9.65 A |
| Speed range | 1,000–2,850 RPM | 1,000–2,850 RPM |
| Energy rating | 6 stars | 5.5 stars |
| Supply | 230–240 V, 50 Hz, 1 phase | 230–240 V, 50 Hz, 1 phase |
Installation
- Install within 12 m of the pool and within 1 m above or below the water level.
- Use 50 mm (or larger) suction pipe and 40 mm (or larger) discharge pipe.
- Leave at least 150 mm clear behind the motor for ventilation.
- Connect to a weatherproof outlet protected by an RCD rated 30 mA or less. Electrical work must be done by a licensed electrician.
Dimensions
| Overall length | 677 mm |
| Width | 192 mm |
| Height | 379 mm |
| Minimum clearance behind the motor | 150 mm |
All measurements in millimetres. Allow extra space for plumbing and servicing.
Downloads 1
More documents in Resources.
Warranty
Covered by Poolrite's manufacturer's warranty. See the full terms for cover and conditions.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Read the warranty terms · Register your product
