C Series Cartridge Filter
CL150 (150 Sq. ft)
Product code: 11070023
Includes GST. Shipping calculated at checkout.
In stock, dispatched from Brisbane
- Designed and made in Brisbane
- 3-year tank warranty
- Australia-wide delivery
- Local support, Mon–Fri
Overview

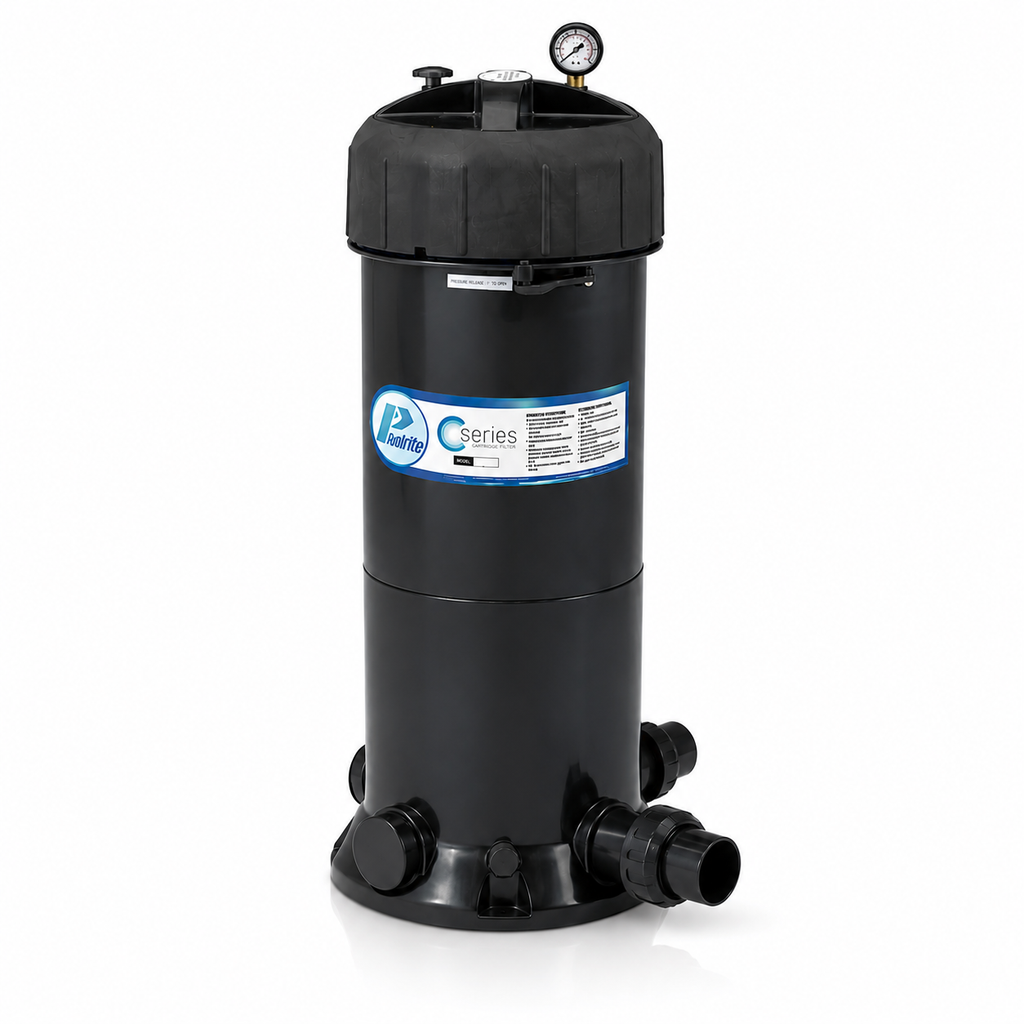

Poolrite C Series Cartridge Filters
Easy to Use. Compact. Ultra-Fine Filtration.
The Poolrite C Series Cartridge Filter range provides an efficient, economical and easy-to-maintain filtration solution for swimming pools and spas. Developed with swimming pool and spa professionals, the C Series combines a compact footprint with fine-grade filtration to deliver dependable performance and sparkling clear water.
At the heart of each C Series filter is a pleated, reusable polyester cartridge element designed to maximise filtration and cleaning performance. Pool and spa water passes through the polyester media, where suspended particles and unwanted debris are captured before cleaner, clearer water is returned to the pool.
Easy Cartridge Maintenance
C Series filters are designed with straightforward routine maintenance in mind. A quick-access locking ring provides access to the internal cartridge element for removal and cleaning, while the filter incorporates an air-release system and pressure gauge to assist with operation and maintenance.
The reusable polyester element can be removed and cleaned using a garden hose or soaked using a suitable cartridge cleaning agent when required. Poolrite recommends cleaning when the operating pressure reaches approximately 40–60 kPa above the recorded clean-filter pressure.
Key Features
- Fine filtration down to 10 microns
- Pleated reusable polyester cartridge element
- Compact 285mm diameter design
- Four configurable plumbing ports
- Quick-access locking ring
- Air-release valve
- Integrated pressure gauge
- Easy-to-remove cartridge element
- Corrosion-resistant filter construction
- Maximum working pressure of 280 kPa
- Four models available to suit different filtration requirements
Choosing the Right Size
Work out your pool’s volume in litres with our Pool Volume Calculator, then compare it with the model range below or talk to a Poolrite dealer about the right filter for your pool and pump.

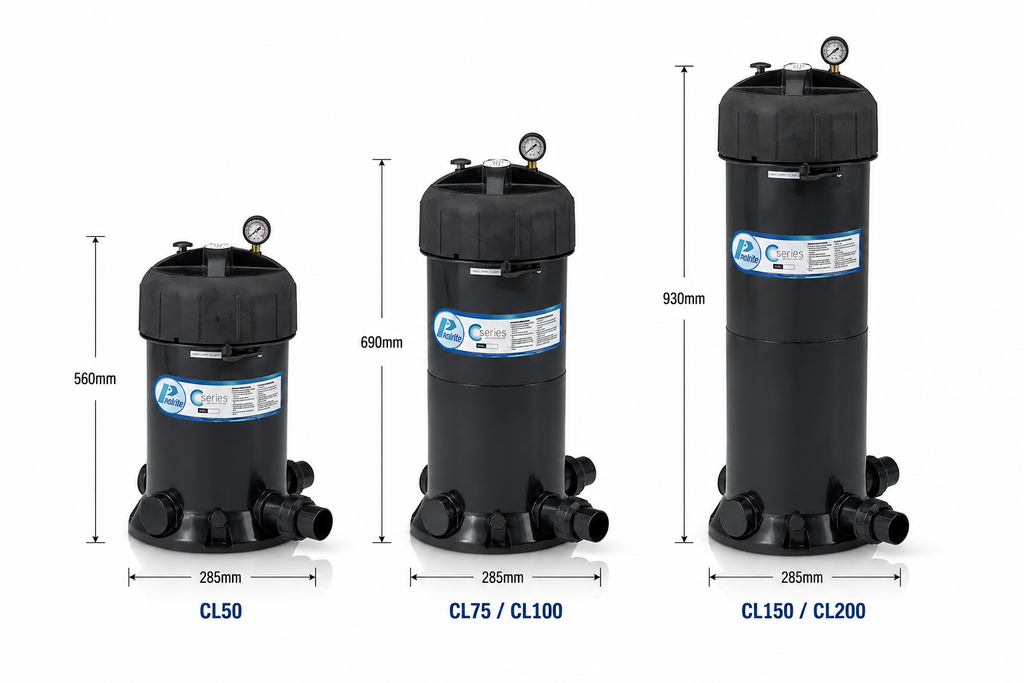

C Series Model Range
| Model | Filter Area | Max. Flow Rate | Dimensions | Min. Element Removal Height |
|---|---|---|---|---|
| CL50 | 50 sq ft | 325 L/min | 285 × 560mm | 870mm |
| CL100 | 100 sq ft | 370 L/min | 285 × 690mm | 1075mm |
| CL150 | 150 sq ft | 470 L/min | 285 × 930mm | 1564mm |
| CL200 | 200 sq ft | 470 L/min | 285 × 930mm | 1564mm |
Downloads 2
Warranty
- 3-year tank warranty (replacement on tank only)
- 1 year on lid components
